Every strain gauge sensor works the same way: load deforms a machined element by a few thousandths of an inch, gauges bonded to it shift in resistance, a Wheatstone bridge turns that shift into a millivolt output, and a certificate traceable to reference standards turns millivolts back into pounds.
That account is complete at any size. What it does not convey is how much the surrounding engineering changes once the numbers get large. A sensor rated to 50,000 lb sits in a load path that lifts, suspends or restrains something substantial, and three things follow that simply do not apply on a bench.
The transient governs, not the working load. On a steady pull, capacity selection is arithmetic. In a lifting or hoisting line it is not, because the peak force is rarely the weight. Snatching a slack rope taut, a hoist starting or stopping, a load swinging, a shock arriving down a cable — each of these produces a momentary force well above the static value, and it is that momentary force the sensor has to survive. A safe overload rating describes what the sensor can endure without damage, not an allowance to be spent routinely, and transients consume it very quickly.
Published specifications are measurement specifications. Accuracy, overload and material data describe how well an instrument measures and what it can take without harm. They are not lifting ratings, and a load cell is not proof-tested rigging hardware. Where the sensor sits in a path that holds weight above people or property, the arrangement needs designing on that basis — with the load path, retention and factors of safety worked out properly rather than inferred from a specification table. It is a conversation worth having with us, and with whoever is responsible for the lifting arrangement, before anything is installed.
The sensor is now an object in its own right. At the top of this range it measures five inches between faces and weighs two and a half pounds. It has to be supported, aligned and retained like any other component of that size, and it occupies length in a line that was probably dimensioned before anybody thought about instrumenting it.
Read that way, heat-treated 17-4 PH stainless construction is the obvious material choice rather than an upgrade — it is what allows a compact body to carry tens of thousands of pounds through a threaded end. High-capacity tension links suit cable and wire tension monitoring, elevator and lift systems, bridge stays and suspension components, crane and hoist ropes, web processing and paper machinery, and structural testing of construction materials.
The bridge and the certificate behave the same at every capacity. What deserves setting out here is what carries the load into the sensor, because at these forces the answer is a single male thread at each end, and everything hangs on it.
Signal. The bridge is excited at 10 VDC and returns 2 mV/V at rated load — roughly twenty millivolts at capacity, whether that capacity is five thousand pounds or fifty thousand. The sensitivity figure is expressed per volt because the output is a ratio of what was supplied, not a fixed voltage, so the excitation the certificate was written at is the excitation the reading assumes.

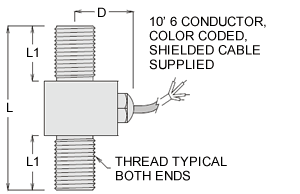

One thread carries everything. A male-threaded tension link transmits its entire rated load through the thread at each end, which is why thread size climbs steeply with capacity across the range — 3/4 inch at 5,000 lb, an inch and a half at 50,000 lb. Whatever screws onto those threads is carrying the same load the sensor is, and it needs to be rated for it. Mating hardware that yields, stretches or works loose is not a nuisance at this scale; it is the failure of the load path.
Misalignment costs more when the forces are large. A tension link has no base fixing its direction, so the line of pull is established entirely by what attaches at either end. Any disagreement between them puts bending into the sensing element, and the gauges cannot distinguish bending from the tension being measured. The percentage error is the same at any capacity, but a percentage of fifty thousand pounds is a large number, and the mechanical consequences of a badly aligned high-force assembly are correspondingly worse. Spherical rod end bearings or an equivalent universal linkage at each end let the assembly settle onto its own axis; performance is quoted with them fitted for that reason.
It measures in one direction only. This series is certified in tension and tension alone — there is no compression option to add. That is unusual in our range, where compression is normally the standard calibration, and it reflects what a tension link is for. A calibration certificate is directional: the sensor has been characterised pulling, and a reading taken while pushing is outside what the certificate describes.
The connection is a specification, not an afterthought. These models are offered with either an integral cable or a twist-lock connector, and there is a real decision behind that. A permanently attached cable has fewer parts to fail and nothing to work loose under vibration. A connector lets a sensor be disconnected, swapped, serviced or moved without disturbing the installation — which matters when the sensor is up a lift shaft, out on a structure or built into machinery. Choose on how the sensor will be maintained over its life, not on what is convenient on the day of installation.
Specifying at this end of the range rewards a little more care than at the bench end, because the mistakes are more expensive and rather harder to undo. Our application engineers deal with these arrangements routinely and would far rather talk it through beforehand.
Size against the peak, not the average. Work out the largest force the assembly can credibly produce, including starts, stops, snatches and anything dropped or swung, and specify against that. If the peak cannot be estimated with confidence, the honest answer is to instrument conservatively and refine later — the cost of a larger sensor is trivial beside the cost of replacing a damaged one and repeating the work.
Settle the mating hardware at the same time. Thread size is fixed by capacity here, so choosing a range chooses your fittings too. Establish what will screw onto each end, confirm it is rated for the same load as the sensor, and remember that rod ends and clevises add length — frequently more than the load cell itself.
Measure the gap you have. Overall length runs from three and a half to five inches before any fittings are added. On a retrofit into an existing cable, stay or tie assembly, that dimension decides feasibility more often than capacity does, and it is worth checking first rather than last.
Choose the connection to suit the life of the installation. Ask whether anyone will ever need to remove this sensor without dismantling the surrounding structure. If the answer is yes — for recalibration, servicing or relocation — a connector earns its cost many times over, and the mating half should be ordered with it rather than sourced in a hurry later.
Be precise about the environment. The standard build protects the sensing area and cable exit against incidental damp, which is what “semi-controlled environment” means and is a smaller claim than sealed or hermetic. Permanent outdoor exposure, wash-down, marine air or immersion are a different requirement, and several of the applications this series serves live outdoors — so it is worth being blunt with us about where the sensor will actually spend its life.
Then decide what reads it. Millivolts need conditioning before anything useful can be done with them: an amplifier signal conditioner module for a voltage or current output, or a digital display where a local reading, alarm thresholds or logging are wanted — alarms being particularly relevant where the point of measuring is to know when a limit has been reached. Cal-Teds plug and play suits installations where sensors are exchanged and nobody wants calibration constants typed in by hand.
Describe the load path, the forces involved and how the assembly is put together, and we will help you arrive at the right model. We hold the standard capacities on the shelf, and academic and research buyers should ask about discounted pricing.
TLL Series Load Cell Applications.
The Transducer Techniques TLL Series tension load cells, designed for accurate measurement of in-line tension forces, have specific applications where they excel, especially when loaded through spherical rod end bearings or similar "universal" mechanical linkages.
- Material Testing: These load cells are used in materials testing laboratories to measure tensile forces applied to materials such as metals, concrete, and construction materials.
- Cable and Wire Tension Monitoring: TLL Series load cells are used to monitor and measure the tension in cables and wires, including telecommunications and power transmission applications.
- Elevator and Lift Systems: These load cells are applied in elevator and lift systems to measure and control the tension in cables and ropes.
- Bridge and Structural Testing: TLL Series load cells are used for assessing tension forces in cables, stays, and suspension systems in bridges and other structures.
- Industrial Machinery: These load cells are deployed in industrial machinery such as web processing machinery, printing presses, and paper machines to monitor and control tension.
- Crane and Hoist Systems: TLL Series load cells are used to measure the tension in cables and lifting ropes on cranes and hoists.
- Research and Development: Engineers and researchers use these load cells during product development and testing to evaluate the performance and structural integrity of components.
- Custom Machinery and Equipment: Manufacturers and research facilities integrate TLL Series load cells into custom-built machinery and equipment designed for specialized testing and manufacturing applications.
- Quality Control: Quality control processes in industries such as aerospace and automotive manufacturing use these load cells to verify that components meet specified tension requirements.
Their reliability and precision contribute to improved product quality, safety, and process efficiency.
Frequently Asked Questions
What capacities does this male-thread tension link cover, and what does each cost?
Five models: TLL-5K at 5,000 lb and TLL-10K at 10,000 lb, both $680; TLL-20K at 20,000 lb, $745; TLL-30K at 30,000 lb, $805; and TLL-50K at 50,000 lb, $925. Unlike the smaller female-thread models, price rises with capacity here, because the body, the thread and the material all have to grow with the load. Specify against the largest force your assembly can credibly produce rather than its normal working figure.
How is this different from your smaller tension load cells?
Three things change. The ends are male threads rather than tapped holes, so fittings screw onto the sensor instead of into it. The material is heat-treated 17-4 PH stainless steel rather than anodized aluminum, which is what makes tens of thousands of pounds possible through a threaded end. And the scale is entirely different — 5,000 to 50,000 lb against 500 to 3,000 lb, with the body growing from an inch and a half long to five inches, and from half an ounce to two and a half pounds. The measuring principle is identical; everything around it is sized for a different job.
What thread is on each model?
Thread size is tied to capacity: 3/4-16 UNF on the 5,000 and 10,000 lb models, 1-14 UNS at 20,000 lb, 1 1/4-12 UNF at 30,000 lb, and 1 1/2-12 UNF at 50,000 lb. Because the entire rated load passes through that thread, the mating fitting has to be rated to carry it as well — and since thread size changes with range, hardware bought for one capacity will not transfer if the capacity is later revised.
Can this series measure compression?
No. These models are supplied with tension calibration only, and there is no compression option to add — which is worth stating clearly, because on most of our other series the position is reversed and compression is the standard. A certificate describes the sensor in the direction it was characterised. If your load path can reverse, or you are not certain that it cannot, tell us at the enquiry stage so we can point you at a bidirectional format instead.
How accurate is it?
Nonlinearity and hysteresis are each 0.25% of rated output, nonrepeatability 0.1%, and zero balance 1.0%. Those percentages are constant across the range, which means the absolute figures are not: a quarter of one percent of 50,000 lb is 125 lb, while the same percentage at 5,000 lb is 12.5 lb. Choosing more capacity than the application needs therefore costs real resolution, and it is the main reason to size carefully rather than simply buying the largest model in the range.
What is the PTB option?
PTB supplies the load cell with a twist-lock connector in place of an integral cable, for $60 more at any capacity — $740 at 5,000 and 10,000 lb, $805 at 20,000, $865 at 30,000 and $995 at 50,000. It is worth having wherever the sensor may need disconnecting without dismantling what surrounds it: installations up a lift shaft, out on a structure, or buried inside machinery, and anywhere the unit will come out periodically for recalibration.
Do I need the AMP-T6 mating assembly as well?
If you order the PTB connector option, you need something to plug into it, and the AMP-T6 six-conductor mating assembly at $83 is the matching half. It is easy to overlook when specifying and awkward to be without on installation day, so order the two together. If you would like the mating assembly made up to a particular length, or terminated to suit your instrument, ask us when you order rather than after.
How much does it deflect under load?
0.005" at rated output — five thousandths of an inch, the largest figure in our load cell range and a direct consequence of the length required to carry these forces. Deflection is how a strain gauge sensor works at all, so it is not a fault, but it is real movement added to your load path. In a long cable or stay it disappears into the elasticity already present. In a short, stiff assembly, or where position is being controlled alongside force, it belongs in your compliance calculation.
What is it made from and how well is it protected?
Heat-treated 17-4 PH stainless steel, a precipitation-hardening grade that combines high strength with reasonable corrosion resistance — the strength is what allows a compact body to carry 50,000 lb through a threaded end. The sensing area and cable exit are moisture protected and suited to semi-controlled environments. That is deliberately a lesser claim than sealed or hermetic. Several of the applications this series serves are outdoors, so if yours is one of them, raise it with us before ordering rather than assuming the standard build covers it.
How does temperature affect the reading?
The compensated range is 60° to 160°F, with output drift of 0.005% of load per °F and zero drift of 0.005% of rated output per °F. Safe limits extend from −65° to 200°F, but working outside the compensated band means accepting drift the compensation network was not configured to remove — which is a genuine consideration for structural, bridge and outdoor cable applications that see the full swing of a year. Where the measurement matters, re-zero once the installation has reached working temperature rather than at the moment of installation.
Questions From The Field
Can I use this load cell as part of a lifting or suspension arrangement?
It is designed to measure tension in exactly those systems, but the distinction to hold onto is that our published figures are measurement specifications rather than lifting ratings. A load cell is an instrument; it is not proof-tested rigging hardware and carries no rating as such. Where it sits in a path holding weight above people or property, the arrangement needs designing deliberately — load path, retention, factors of safety and whatever standards apply to that installation — by whoever is responsible for it. Talk to us about the sensor and to them about the lifting arrangement, and make sure the two conversations meet.
My readings occasionally spike far above the actual load. Is the sensor faulty?
Probably not — it is far more likely that the spikes are real. A rope going suddenly taut, a hoist starting or braking, or a suspended load beginning to swing all produce momentary forces well above the static weight, and a strain gauge bridge responds fast enough to record them. That is useful information rather than noise: those peaks are what your assembly is actually experiencing, and they are what determines whether the capacity you chose is adequate. If they approach the safe overload figure, the sensor is telling you something important about the system rather than about itself.
What happens if it gets overloaded once?
The safe overload rating of 150% describes what the sensor can experience without permanent damage — it is a survival limit, not headroom to work within. A single excursion beyond it may leave no visible mark while having shifted the zero or altered the calibration, and there is no reliable way to tell by inspection. If you know or suspect an overload has occurred, the honest course is recalibration before the readings are relied on again. Where overloads are a foreseeable part of the application, size for them at the outset or design a mechanical limit into the assembly.
What should the mating fittings be made of?
Whatever is properly rated for the full load, from a known source with known properties. The entire capacity of the sensor passes through the thread at each end and straight into whatever is screwed onto it, so a fitting that yields or strips is a failure of the load path rather than an inconvenience. At these capacities that means load-rated hardware selected on published strength figures — not something improvised in the workshop, and not general-purpose fasteners chosen because the thread happened to match.
Do I have to use rod end bearings, or can I thread it straight into my assembly?
It will work threaded directly in, provided your load path is genuinely straight and stays straight under load. We quote best performance with spherical rod end bearings because they let the assembly settle onto its own line of pull. Fixed rigidly between two points that do not quite agree on direction, the difference has to go somewhere, and where it goes is into the sensing element as bending — which the gauges report as force. Cables and ropes that move, swing or change angle in service make the case stronger still, since the direction of pull is not even constant.
Should I order the connector version or the version with a cable attached?
Ask one question: will anyone need to remove this sensor without dismantling what is around it? If it is going somewhere awkward — a lift shaft, a structure, inside a machine — or will come out periodically for recalibration, the connector pays for itself the first time. If it will be installed once on accessible equipment and left alone, an integral cable has fewer parts and nothing to work loose under vibration. Where a connector is chosen, order the mating assembly with it.
Can I leave one of these permanently installed on a structure outdoors?
Long-term structural monitoring is a legitimate use of this series, but the standard build is described as moisture protected and suited to semi-controlled environments — which is not the same as being specified for years of unsheltered weather. Sustained exposure, driving rain, marine air and freeze-thaw cycling are a harder environment than that wording covers. Tell us the site and the intended duration and we will be straight with you about whether the standard product suits it or whether the installation needs additional protection.
The load cell twisted while I was screwing the fittings on. Should I be concerned?
Yes, enough to check how it was done. Rotating the body while making up a connection means the assembly torque went through the sensor rather than around it, and on a component whose interior is a machined sensing element that is not what you want. Use two tools, holding the sensor at the end being worked on so the turning force is taken locally. If it has already happened, compare the unloaded reading against the zero balance figure on the certificate — a shifted zero is the usual first sign that something has been asked of the element that it was not designed for.
